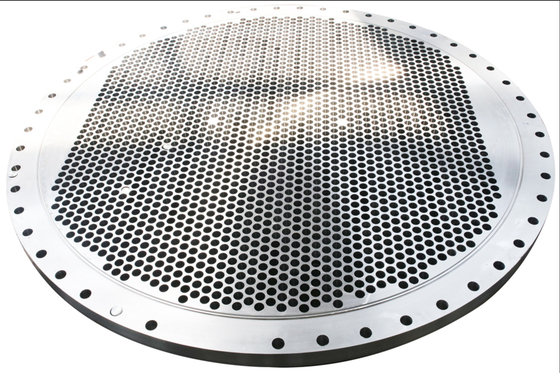

ASME SB171 C63000 Aluminum Nickel Bronze Tube Sheet For Heat Exchanger
Product Details:
| Place of Origin: | CHN |
| Brand Name: | HMD |
| Certification: | SGS, BV, TUV,CE |
| Model Number: | NONE |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 Piece |
|---|---|
| Price: | USD 10-20 per KG |
| Packaging Details: | Wooden Case, Pallets and Others Proper for Transfer |
| Delivery Time: | 30 Days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 500 Tons per Year |
|
Detail Information |
|||
| Material: | SB171 C63000 Aluminum-Nickel Bronze | Type: | Explosive Or Cold Rolled |
|---|---|---|---|
| Surface: | Bright | Size: | Cladding Side 2-20 Mm |
| Length And Diameter: | Max 5000 Mm | Status: | Annealed |
| Highlight: | C63000 Aluminum Nickel Bronze Tube Sheet,ASME Tube Sheet for Heat Exchanger,SB171 Tube Sheet For Heat Exchanger |
||
Product Description
ASME SB171 C63000 Aluminum-Nickel Bronze Tubesheet and Plates
PRODUCTION
Operations:
Drilling,Grooving,Reaming,Milling,Slotting,Tapping.
BS EN ISO 9001, Ultrasonic and Liquid Penetrant Flaw Detection and Dimensional Testing
BS EN ISO 9001 approved.
All materials sold are fully traceable to the original test certificate.
We also offer the following services:
Ultrasonic and liquid penetrant flaw detection.
Witnessing of material by yourselves or an approved body such as Lloyds.
Dimensional testing of machined items.

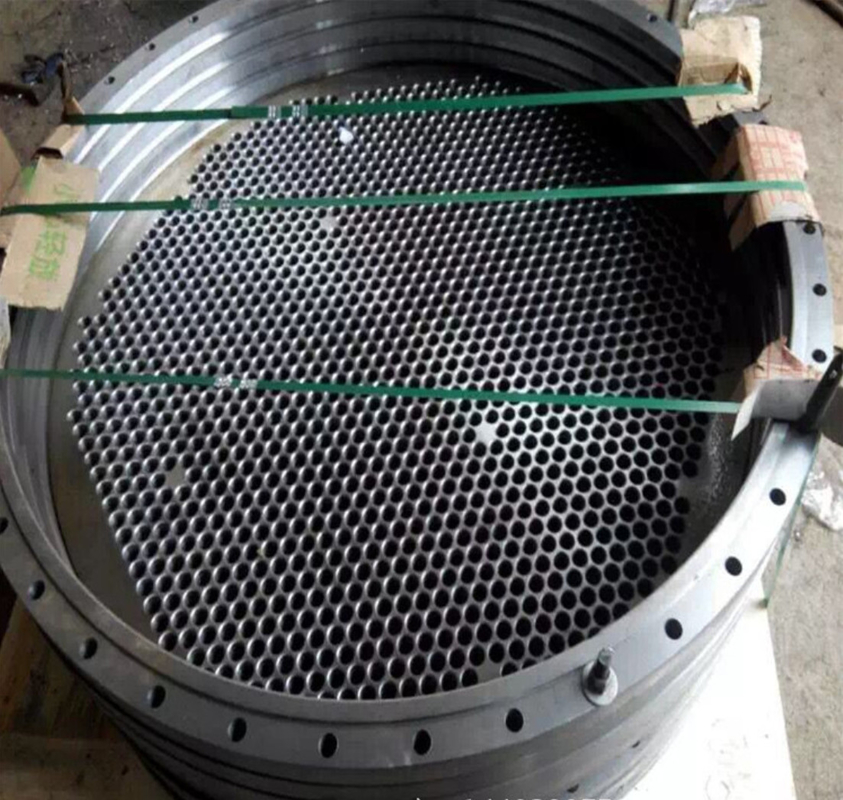

Finally, to ensure the product arrives to you undamaged, all our products are carefully packaged using protective materials to prevent damage during transit.
In order to achieve the delivery times required by many customers, we hold 200 tonnes of stock.
This large range of material means we can now cut and machine tube plates in-house, offering a finished product with a fast delivery time to any part of the world.
To complement our stock range, we can offer mill deliveries for “special” enquiries such as large diameter discs (up to 2m), in hot rolled condition for brass parts; or forged for copper, nickel or aluminium bronze requirements.
All forged products can be delivered in forged, proof-machines or fully-machined condition.
Discs forged up to 5000mm OD and over 500mm thick (depending on material)
Disc maximum weight of 49 tons
including hole drilling for heat exchanger tube sheets
cladding by weld overlay with duplex, titanium and nickel alloys
Discs and tube sheets can be delivered in pre-machined and finished machined condition. Complete whole drilling is available.
| Type of materials | Technical requirements * according to |
| Duplex Stainless Steel | ASTM/ASME SA182 F44, F45, F51, F53, F55, F60, F61 |
| Stainless Steel | ASTM/ASME SA182 F304,304L,F316,316L, F310, F317L, F321, F347 |
| Carbon Steel | ASTM/ASME A105, A350 LF1, LF2, A266, A694, A765 Gr.2 |
| Alloy Steel | ASTM/ASME SA182 F1, F5, F9, F11, F12, F22, F51, A350-LF3 |
| Non Ferrous | Titanium, Brass, Al-Brass, Copper Nickel, Nickel Alloys, Hastelloy |
| Titanium | ASTM/ASME SB381, Gr.1, Gr.2, Gr.5, Gr.7, Gr.12, Gr.16 |
| Copper Nickel | ASTM/ASME SB151, UNS 70600(Cu-Ni 90/10), 71500(Cu-Ni 70/30) |
| Brass, Al-brass | ASTM/ASME SB152 UNS C10100, C10200,C10300,C10800,C12200 |
| Nickel Alloys | ASTM/ASME SB169,SB171, SB564, UNS 2200, UNS 4400, UNS 8825 UNS 6600, UNS 6601, UNS 6625 |
| Alloy 20 | ASTM/ASME SB472 UNS 8020 |
| Hastelloy | ASTM/ASME SB564, UNS10276 ( C 276 ) |
| Claded materials | ASTM/ASME SB898, SB263, SB264 or closer explosion cladding, making materials of 2 in 1 or 3 in 1. |
| Titanium- Steel, Nickel-Steel,Titanium- Copper, Stainless Steel- Carbon Steel, Alloys- Steel etc. |
