ASTMB265 Gr1 SA 516 Titanium Tube Sheets 90mm Tube Sheet For Pressure Vessels
Product Details:
| Place of Origin: | CHN |
| Brand Name: | HMD |
| Certification: | SGS, BV, TUV, LR |
| Model Number: | NONE |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 kg |
|---|---|
| Price: | USD 1-5 per kg |
| Packaging Details: | Seaworthy and proper protecting goods packing |
| Delivery Time: | 30days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 500 tons per year |
|
Detail Information |
|||
| Material: | Titanium Gr1 + SA 516 Gr70 | Machining: | According To Drawing |
|---|---|---|---|
| Drilling: | According To Drawing | Length: | 15 Meters Max |
| Standard: | ASTM B898 | Surface: | Polished |
| Application: | Heat Exchanger | ||
| Highlight: | Gr1 SA 516 Titanium Tube Sheets,Titanium Tube Sheets 90mm,90mm Tube Sheet for Pressure Vessels |
||
Product Description

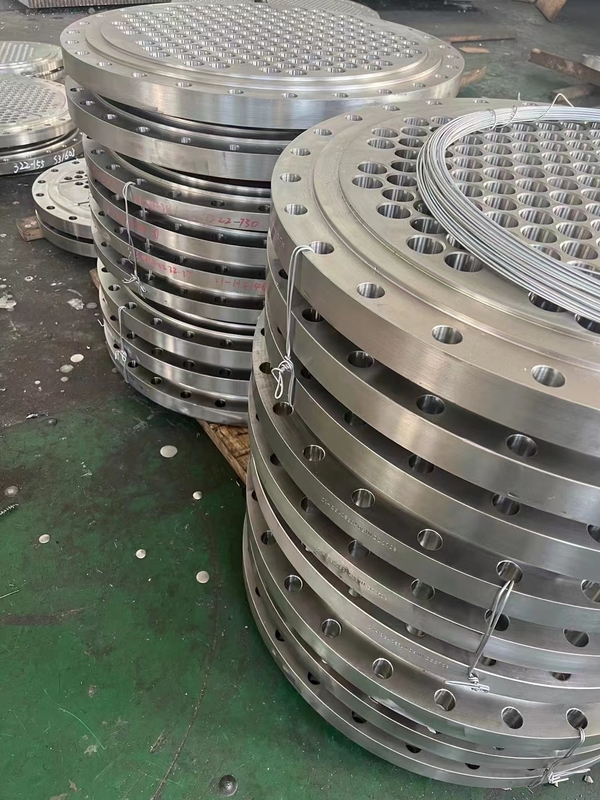

Titanium ASTMB265 Gr1 10mm + SA 516 GR70 90mm Tube sheet for Heat Exchanger
Product Description
The welding of a titanium tube sheet with titanium tubes. The tube sheet is made of titanium cladding: ASTM A516 Grade 70 plate bonded with the ASTM B265 Gr.1 sheet. The titanium welded tubes (Φ25mm x 0.7mm thk. x 11.2m length) are manufactured to ASTM B338 Grade 1. The tube sheet is designed for a power plant condenser in Australia.
Titanium has been widely used in various chemical reaction vessels and heat exchanger materials because of its excellent corrosion resistance, but its disadvantage is high cost. Especially for the use as structural components, this problem is particularly obvious, And the effective solution is the use of titanium clad steel plate. The combination of titanium and ordinary steel is called titanium clad steel plate. It has the corrosion resistance of titanium and the strength of the ordinary steel plate as the structure. What matters most is that the overall cost can be reduced greatly.
AVAILABLE SIZES:
Cladding plates thickness:2-12mm
Base plates thickness: 3-200mm
Length: 12 meters Max.
PROCESSING :
Rolling cladding and Explosive cladding
STANDARD:
ASTMB898
| STANDARD | CHEMICAL COMPOSITION (weight %, max or range) | MECHANICAL PROPERTIES (min) | |||||||||||||
| ASTM B265 | UNS No |
N | C | H | Fe | O | Al | V | Pd | Mo | Ni | Tensile | Yield | El. | Red. |
| Mpa | Mpa | % | % | ||||||||||||
| GR 1 | R50250 | 0.03 | 0.08 | 0.015 | 0.2 | 0.18 | 240 | 138 | 24 | 30 | |||||
| GR 2 | R50400 | 0.03 | 0.08 | 0.015 | 0.3 | 0.25 | 345 | 275 | 20 | 30 | |||||
| GR 3 | R50550 | 0.05 | 0.08 | 0.015 | 0.3 | 0.35 | 450 | 380 | 18 | 30 | |||||
| GR 4 | R50700 | 0.05 | 0.08 | 0.015 | 0.5 | 0.4 | 550 | 483 | 15 | 25 | |||||
| GR 5 | R56400 | 0.05 | 0.08 | 0.015 | 0.4 | 0.2 | 5.5-6.75 | 3.5-4.5 | 895 | 828 | 10 | 25 | |||
| GR 7 | R52400 | 0.03 | 0.08 | 0.015 | 0.3 | 0.25 | 0.12-0.25 | 345 | 275 | 20 | 30 | ||||
| GR 9 | R56320 | 0.03 | 0.08 | 0.015 | 0.25 | 0.15 | 2.5-3.5 | 2.0-3.0 | 620 | 483 | 15 | 25 | |||
| GR 12 | R53400 | 0.03 | 0.08 | 0.015 | 0.3 | 0.25 | 0.2-0.4 | 0.6-0.9 | 483 | 345 | 18 | 25 | |||
| GR 23 | R56401 | 0.03 | 0.08 | 0.0125 | 0.25 | 0.13 | 5.5-6.5 | 3.5-4.5 | 828 | 759 | 10 |
