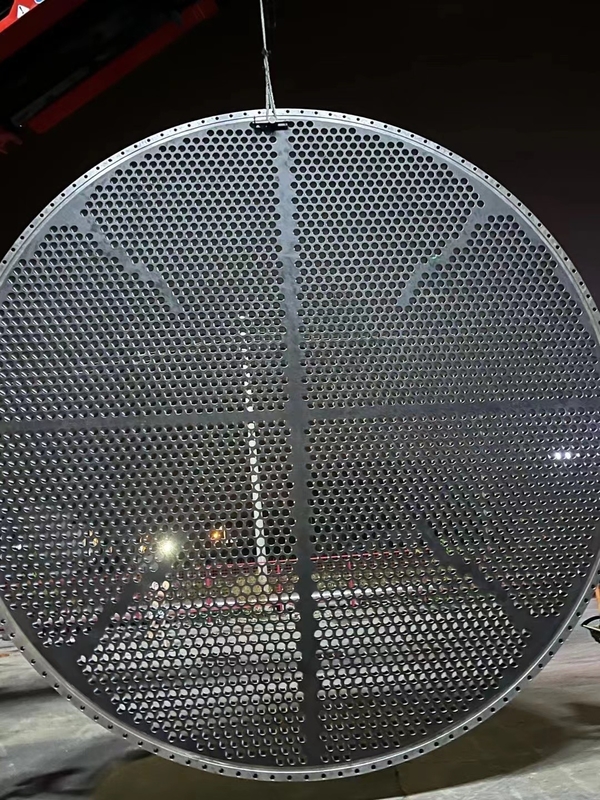

Gr5 Gr7 Gr9 Titanium Tubesheet Carbon Steel Gr70 Exchanger Tube Sheet
Product Details:
| Place of Origin: | CHN |
| Brand Name: | HMD |
| Certification: | SGS, BV, TUV, LR |
| Model Number: | NONE |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 kg |
|---|---|
| Price: | USD 1-5 per kg |
| Packaging Details: | Seaworthy and proper protecting goods packing |
| Delivery Time: | 30days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 500 tons per year |
|
Detail Information |
|||
| Material: | Titanium + Cabon Steel | Machining: | According To Drawing |
|---|---|---|---|
| Drilling: | According To Drawing | Length: | 15 Meters Max |
| Standard: | ASTM B898 | Technical: | Rolling And Explosive |
| Application: | Heat Exchanger | ||
| Highlight: | Gr9 Titanium Tubesheet,Gr5 Titanium Tubesheet Carbon Steel,Titanium Gr70 Exchanger Tube Sheet |
||
Product Description
Titanium ASTMB265 Gr1,Gr2,Gr5,Gr7,Gr9,Gr12 +Carbon Steel SA 516 Gr70 ect Tube sheet for Heat Exchanger
Product Description
Titanium-Carbon steel cladding plates are ideal when high strength and corrosion resistance are needed simultaneously, such as pressure vessels, paper-making plant chemical tankers, desalination plants, and so on. Typical applications include petrochemical, chemical, food, fertilizer, wet metallurgy, vacuum salting making, and electroplating.
The clad plate is incredibly difficult to punch, drill or machine, but it can be cut and formed, including plasma cutting, drawing, bending, and hot forming like normal steel plates.
As a standard and custom titanium clad plates manufacturer, HuaMao Metal mainly supplies stainless steel, titanium, aluminum, copper, and nickel clad plates for a wide of industrial fields.
AVAILABLE SIZES:
Cladding plates thickness:2-12mm
Base plates thickness: 3-400mm
Length: 15 meters Max.
PROCESSING :
Rolling cladding and Explosive cladding
STANDARD:
ASTMB898
| STANDARD | CHEMICAL COMPOSITION (weight %, max or range) | MECHANICAL PROPERTIES (min) | |||||||||||||
| ASTM B265 | UNS No |
N | C | H | Fe | O | Al | V | Pd | Mo | Ni | Tensile | Yield | El. | Red. |
| Mpa | Mpa | % | % | ||||||||||||
| GR 1 | R50250 | 0.03 | 0.08 | 0.015 | 0.2 | 0.18 | 240 | 138 | 24 | 30 | |||||
| GR 2 | R50400 | 0.03 | 0.08 | 0.015 | 0.3 | 0.25 | 345 | 275 | 20 | 30 | |||||
| GR 3 | R50550 | 0.05 | 0.08 | 0.015 | 0.3 | 0.35 | 450 | 380 | 18 | 30 | |||||
| GR 4 | R50700 | 0.05 | 0.08 | 0.015 | 0.5 | 0.4 | 550 | 483 | 15 | 25 | |||||
| GR 5 | R56400 | 0.05 | 0.08 | 0.015 | 0.4 | 0.2 | 5.5-6.75 | 3.5-4.5 | 895 | 828 | 10 | 25 | |||
| GR 7 | R52400 | 0.03 | 0.08 | 0.015 | 0.3 | 0.25 | 0.12-0.25 | 345 | 275 | 20 | 30 | ||||
| GR 9 | R56320 | 0.03 | 0.08 | 0.015 | 0.25 | 0.15 | 2.5-3.5 | 2.0-3.0 | 620 | 483 | 15 | 25 | |||
| GR 12 | R53400 | 0.03 | 0.08 | 0.015 | 0.3 | 0.25 | 0.2-0.4 | 0.6-0.9 | 483 | 345 | 18 | 25 | |||
| GR 23 | R56401 | 0.03 | 0.08 | 0.0125 | 0.25 | 0.13 | 5.5-6.5 | 3.5-4.5 | 828 | 759 | 10 |
15
|
|||
