Hot Rolled Copper Tube Sheet ASME SA516 GR70 Tube Sheet Heat Exchanger
Product Details:
| Place of Origin: | CHN |
| Brand Name: | HMD |
| Certification: | SGS, BV, TUV, ISO |
| Model Number: | NONE |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 piece |
|---|---|
| Price: | USD 5-10 per KG |
| Packaging Details: | Seaworthy wooden case with frame protecting goods well enough without damage. |
| Delivery Time: | 30days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 500 tons per year |
|
Detail Information |
|||
| Material: | ASME SA516. GR70 | Status: | Annealed |
|---|---|---|---|
| Condition: | Exploded Or Hot Rolled | Standard: | ASTMB432 |
| Surface: | Polished | ||
| Highlight: | Copper Tube Sheet ASME SA516 GR70,Hot Rolled Copper Tube Sheet ASME,GR70 Tube Sheet Heat Exchanger |
||
Product Description
Tubesheets Plates ASME SA516. GR70+ASTM B111 CuNi 70/30 , Claded Plates, Bonded Plates.
Production:
The metal clad plate bonded through explosive welding and rolling is a new type of material with the advantages of various material, which enable the significant reduction of production cost while meet the real demands. This allows wide application in petroleum, chemical industry, water corservancy, salt refining and building decoration.
Features of our products
Tubesheet is widely used in shell and tube heat exchanger, boiler, pressure vessel, steam turbine, large central air
Conditioning, etc. The customized high precision tube sheet is mainly used for chemical containers, such as shell and tube
Heat exchanger, boiler, pressure vessel, condenser, central air conditioning, evaporator, water desalination with the function of
Supporting the fixed shell and tube.
Feature of tube sheet:

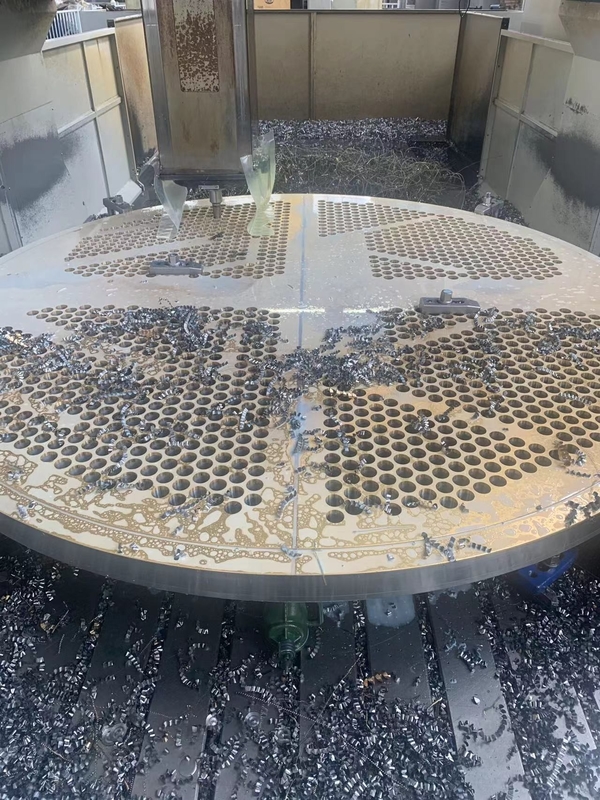

Auto CNCMachine for Machining
Good tube holes, smooth surface , high precisive, and easy for assembling.
Clad plate THK: 2-12mm
Base Plate THK: 2-600mm
Unit Weight: Max 15 tons
Material of tube sheet:
Copper, Brass Alloys as the cladding plates as ASTM B111 CuNi 70/30
Base plate material: Stainless steel ASTM A516 Gr70
Size: ASTM B111 CuNi 70/30 10MM + ASTM A516 Gr70 90MM + Dia3762MM
| Thickness | 3mm-600mm / Clients' requirement |
| Width/Diameter | 450mm-5000mm / Clients' requirement |
| Length | 300-18000mmm/ Clients' requirement |
| Making method | Hot Rolled, exploded |
| Payment | T/T or LC |
| Package | Standard Seaworthy Package,as Your Request |
| Delivery time | according to clients' requirement |
